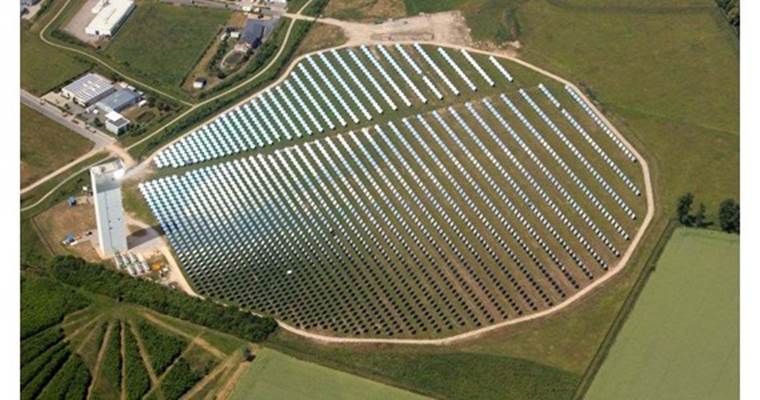

General Plant Data

·         Location: Julich North Rhine-Westphalia Germany

·         Owner(s): DLR

·         Capacity (MW): 1.5 MW

Source: https://stobbe.com/research/solar-energy/juelich-solar-tower/

Plant Timeline

·         Generation Start Year: 2008

Plant Costs

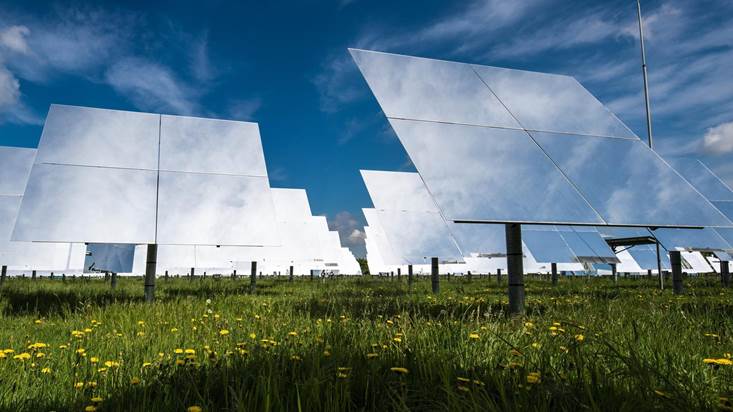

Heliostat Design

·         Heliostat Aperture Area (m²): 8

·         Heliostat Facets (C x R): 2X2

·         Solar Field Area (m²): 17650

Source: https://www.dlr.de/en/research-and-transfer/research-infrastructure/solar-towers-juelich

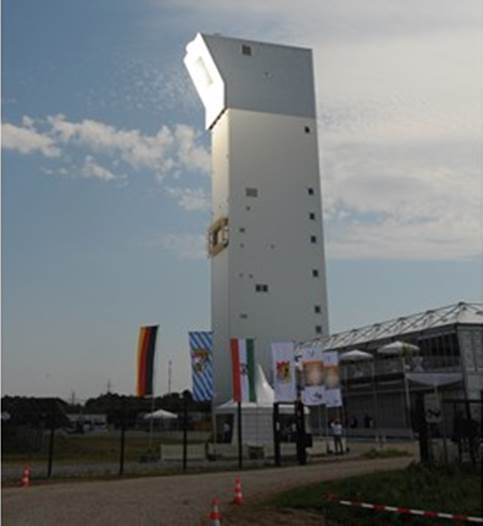

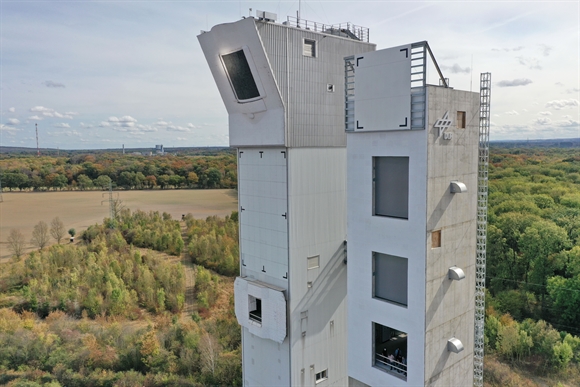

Tower/Receiver

·         Tower Height (m): 60

·         Receiver Fluid: Air

·         Receiever Manufacturer: Kraftanlagen Munchen

·         Receiver Model: Air receiver

Source: https://stobbe.com/research/solar-energy/juelich-solar-tower/

Source: https://stobbe.com/research/solar-energy/juelich-solar-tower/

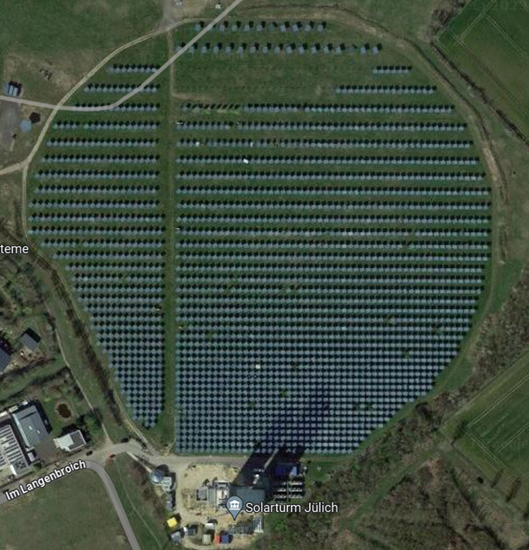

Plant Layout

·         Number of Heliostats: 2153

·         Tower Position (Lat/Long): 50.915,6.388

Source:  Google Map

Lessons Learned

The receiver area is about 22 square meters, which receiving the sun rays. It consists of porous ceramic elements conducting a flow of air sucked in from outside. The heat storage system is filled with a packing of ceramic elements. These elements are heated by the hot air, and the heat is retrieved by reversing this process, therefore, the power generation can continue with clouds pass overhead.

Source: “DLR - Institute of Solar Research - the Jülich Solar Tower: A Test Facility for Commercial Solar Thermal Power Plants.” Www.dlr.de, www.dlr.de/sf/en/desktopdefault.aspx/tabid-8560/15527_read-44867/.

Other Sources:

[1] “Jülich Solar Tower | Concentrating Solar Power Projects | NREL.” Solarpaces.nrel.gov, solarpaces.nrel.gov/project/julich-solar-tower.

Link: https://solarpaces.nrel.gov/project/julich-solar-tower
