Plant	Planta Solar 20
Location	Spain
Owner(s)	Abengoa
Capacity (MW)	20
Construction Start Date	2006
Generation Start Year	2009
Construction Cost ($)	90 mil
Cost pkWh ($)	7249.3
LCOE ($)	0.26
Heliostat Aperture Area (m²)	120
Heliostat Manufacturer	Abengoa
Heliostat Model	Solucar 120
Heliostat Dimension	12.9m x 9.6m
Heliostat Facets (C x R)	4x7
Solar Field Area (m²)	150000
Heliostat Cost pm² ($)	386.64
Tower Height (m)	165
Receiver Fluid	Water
Receiever Manufacturer	Aalborg CSP Denmark
Receiver Model	Cavity
Number of Heliostats	1255
Tower Position (Lat/Long)	37.442,-6.25

General Plant Data

·       Location: Spain

·       Owner(s): Abengoa

·       Capacity (MW): 20

Source: https://www.amusingplanet.com/2013/08/the-solar-power-towers-of-seville-spain.html

Plant Timeline

·       Construction Start Date: 2006

·       Generation Start Year: 2009

Plant Costs

·       Construction Cost ($): 90 mil

·       Cost pkWh ($): 7249.3

·       LCOE ($): 0.26

Heliostat Design

·       Heliostat Aperture Area (m²): 120

·       Heliostat Manufacturer: Abengoa

·       Heliostat Model: Solucar 120

·       Heliostat Dimension: 12.9m x 9.6m

·       Heliostat Facets (C x R): 4x7

·       Solar Field Area (m²): 150000

·       Heliostat Cost pm² ($): 386.64

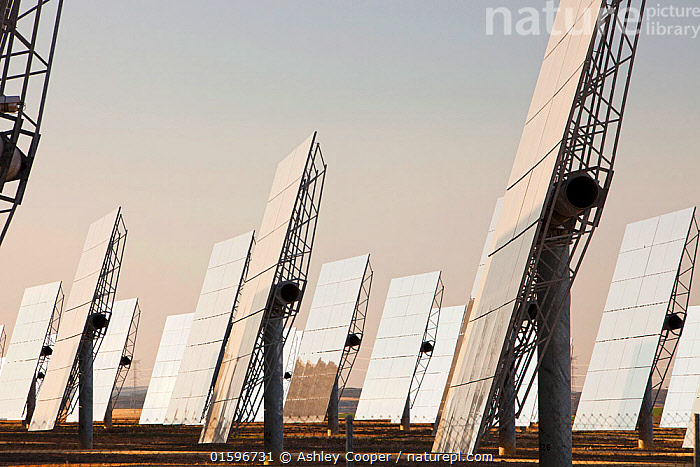

Source: https://www.naturepl.com/stock-photo-nature-image01596731.html

Tower/Receiver

·       Tower Height (m): 165

·       Receiver Fluid: Water

·       Receiever Manufacturer: Aalborg CSP Denmark

·       Receiver Model: Cavity

Source: https://www.flickr.com/photos/beyondcoalandgas/9357649940/

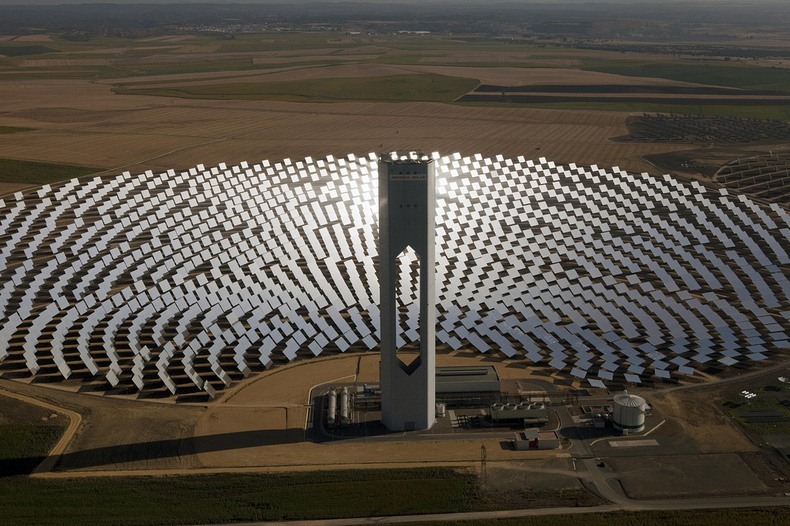

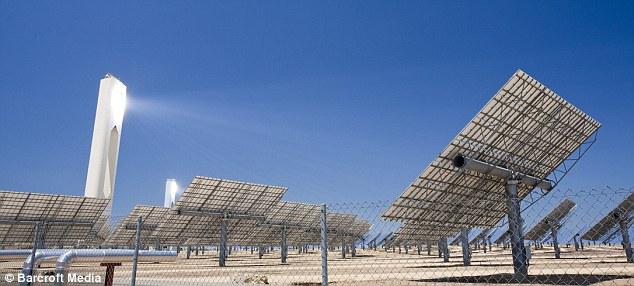

Source: https://www.dailymail.co.uk/sciencetech/article-2004793/Pictured-Spains-spectacular-solar-power-plants-channelling-blazing-Seville-sun.html

Plant Layout

·       Number of Heliostats: 1255

·       Tower Position (Lat/Long): 37.442,-6.25

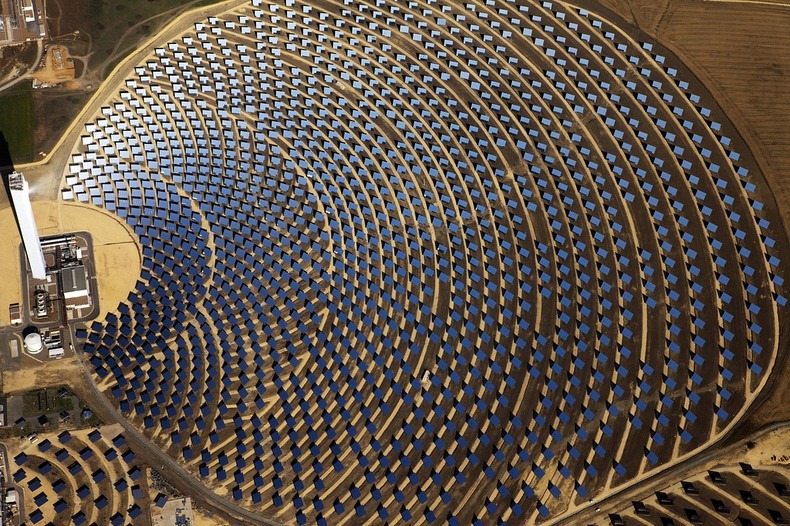

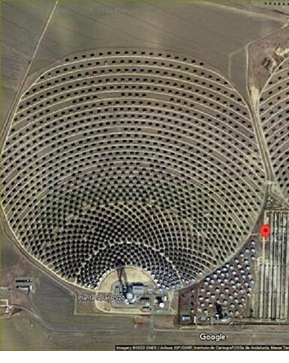

Source: https://aenert.com/news-events/industrial-tours/n/15-years-of-the-first-commercial-concentrating-solar-power-plant-ps10/

Lessons Learned

Compared to Planta Solar 10, Planta Solar 20 made many modifications, it has much longer steam accumulators, bigger pipe and equipment sizes, and bigger displacements relative to the thermal expansion. The engineering design was created by MicroStation and OpenPlant. Currently, the PS20 solar field could generate 48GWh/year, and will be able to supply about 12000 households.

Source:
“Central Solar PS20 Power Plan in Seville, Spain by Energoprojekt Gliwice.” ArchShowcase, 8 Aug. 2012, www10.aeccafe.com/blogs/arch-showcase/2012/08/08/central-solar-ps20-power-plan-in-seville-spain-by-energoprojekt-gliwice/. Accessed 13 Nov. 2023.
