LuNeng Haixi
Plant |
LuNeng Haixi |
Location |
China |
Owner(s) |
Luneng Group |
Capacity (MW) |
50 |
Construction Start Date |
Jun.30, 2017 |
Construction End Date |
2019 |
Generation Start Year |
2019 |
Construction Cost ($) |
1.1 bil |
Specific Cost ($/kW) |
3315.5 |
LCOE ($/kWh) |
0.09 |
Heliostat Aperture Area (m²) |
138 |
Heliostat Manufacturer |
Abengoa Spain |
Heliostat Model |
ASUP 140 |
Mirror Manufacturer |
Damin Glass China |
Heliostat Facets (C x R) |
4x8 |
Solar Field Area (m²) |
610000 |
Tower Height (m) |
188 |
Receiver Height (m) |
14 |
Receiver Fluid |
Molten Salt |
Receiever Manufacturer |
CMI Energy |
Receiver Model |
External - Cylindrical |
Number of Heliostats |
4400 |
Tower Position (Lat/Long) |
(36.397,95.227) |
General Plant Data
· Location: China
· Owner(s): Luneng Group
· Capacity (MW): 50
Source: https://helioscsp.com/china-luneng-haixi-50-mw-tower-concentrated-solar-power-project-to-operate-end-august/
Plant Timeline
· Construction Start Date: Jun.30, 2017
· Construction End Date: 2019
· Generation Start Year: 2019
Plant Costs
· Construction Cost ($): 1.1 bil
· Specific Cost ($/kW): 3315.5
· LCOE ($/kWh): 0.09

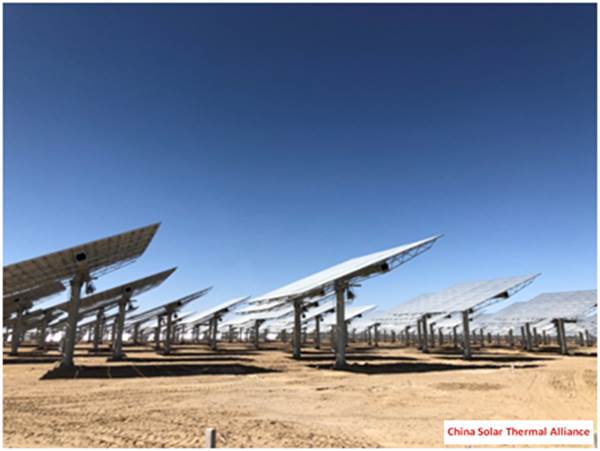

Heliostat Design
· Heliostat Aperture Area (m²): 138
· Heliostat Manufacturer: Abengoa Spain
· Heliostat Model: ASUP 140
· Mirror Manufacturer: Damin Glass China
· Heliostat Facets (C x R): 4x8
· Solar Field Area (m²): 610000
Source: http://en.cnste.org/html/csp/2019/0801/463.html

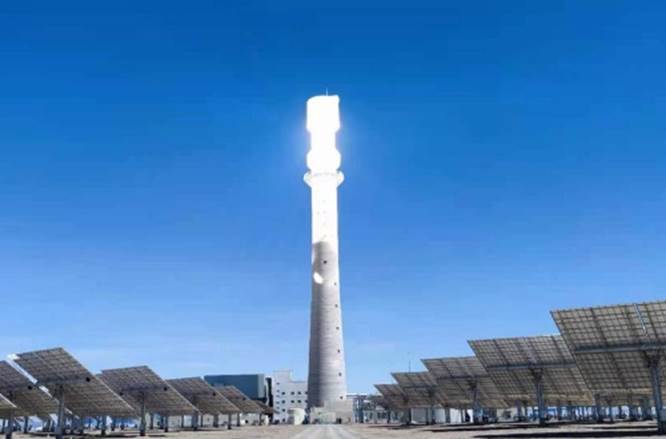

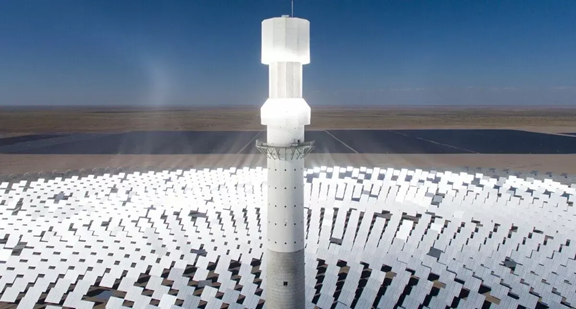

Tower/Receiver
· Tower Height (m): 188
· Receiver Height (m): 14
· Receiver Fluid: Molten Salt
· Receiever Manufacturer: CMI Energy
· Receiver Model: External - Cylindrical
Source: http://www.powerchina.cn/art/2021/5/18/art_7444_1104182.html
Source: https://www.mageba-group.com/kr/ko/1023/%EC%95%84%EC%8B%9C%EC%95%84/%EC%A4%91%EA%B5%AD/183093/Luneng-Haixi-Geermu-Power-Plant.htm

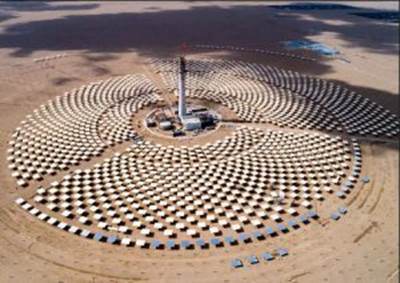

Plant Layout
· Number of Heliostats: 4400
· Tower Position (Lat/Long): (36.397,95.227)
Source: https://www.evwind.es/2019/07/30/china-luneng-haixi-50-mw-tower-concentrated-solar-power-project-to-operate-end-august/68246
Local Environmental Conditions
The project located in the province of Qinghai in China, which has abundant solar radiation, but is a high altitude desert environment and the has severe weather conditions.
Lessons Learned
LuNeng Haixi is the fifth CSP demonstration project in China. This project combined CSP with
wind power and solar PV, along with thermal energy storage, demonstrates the
potential for creating balanced and reliable renewable energy systems.
Source: “China Connects Luneng, Its 5th CSP Project in Climate Push.” SolarPACES, 22 Sept. 2019,
www.solarpaces.org/china-connects-its-5th-csp-project-in-climate-push/.
