Plant	Atacama I(Cerro Dominador)
Location	Calama Antofagasta Chile
Owner(s)	EIG
Capacity (MW)	110 MW
Construction Start Date	2014
Construction End Date	2020
Generation Start Year	2021
Construction Cost ($)	$1400 mil
Heliostat Aperture Area (m²)	140
Heliostat Manufacturer	Abengoa Spain
Heliostat Model	ASUP 40V3
Mirror Manufacturer	Rioglass Spain
Heliostat Facets (C x R)	4 x 8
Solar Field Area (m²)	1484000
Tower Height (m)	243
Receiver Height (m)	32.4
Receiver Fluid	Molten Salt
Receiever Manufacturer	CMI Energy
Receiver Model	Molten salt solar receiver
Number of Heliostats	10600
Tower Position (Lat/Long)	(-22.771,-69.479)

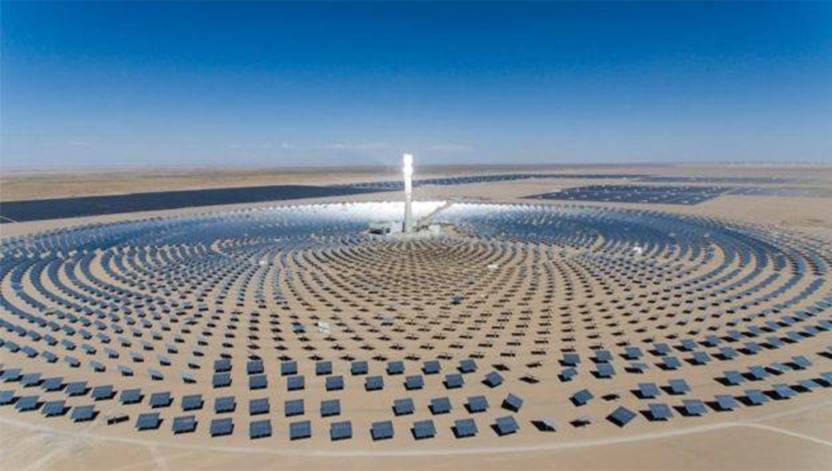

General Plant Data

·         Location: Calama Antofagasta Chile

·         Owner(s): EIG

·         Capacity (MW): 110 MW

Source: https://www.energytrend.com/news/20210630-22238.html

Plant Timeline

·         Construction Start Date: 2014

·         Construction End Date: 2020

·         Generation Start Year: 2021

Plant Costs

·         Construction Cost ($): $1400 mil

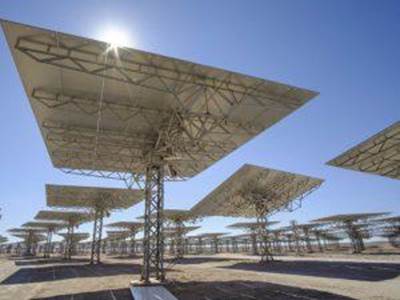

Heliostat Design

·         Heliostat Aperture Area (m²): 140

·         Heliostat Manufacturer: Abengoa Spain

·         Heliostat Model: ASUP 40V3

·         Mirror Manufacturer: Rioglass Spain

·         Heliostat Facets (C x R): 4 x 8

·         Solar Field Area (m²): 1484000

Source: https://helioscsp.com/cerro-dominador-the-first-concentrated-solar-power-in-chile/

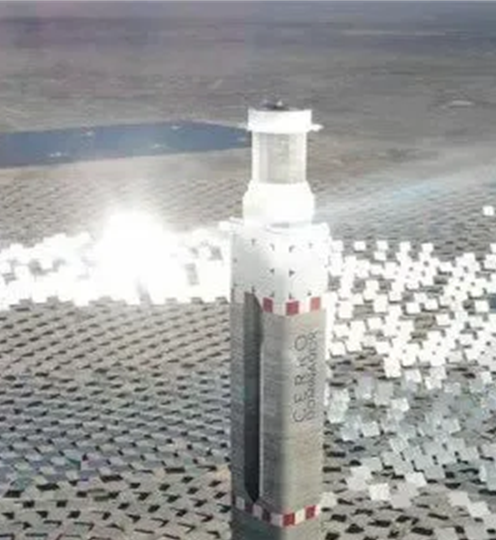

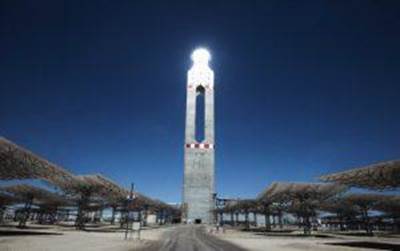

Tower/Receiver

·         Tower Height (m): 243

·         Receiver Height (m): 32.4

·         Receiver Fluid: Molten Salt

·         Receiever Manufacturer: CMI Energy

·         Receiver Model: Molten salt solar receiver

Source: https://helioscsp.com/cerro-dominador-concentrated-solar-power-plant/

Source: https://helioscsp.com/huge-110-mw-concentrated-solar-power-tower-and-storage-project-begins-production-in-chile/

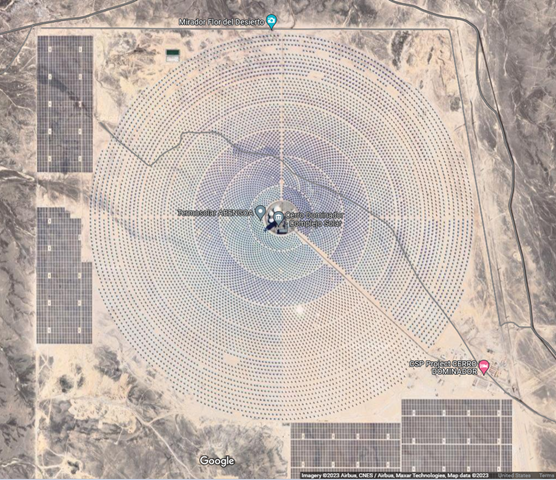

Plant Layout

·         Number of Heliostats: 10600

·         Tower Position (Lat/Long): (-22.771,-69.479)

Source: https://www.google.com/maps/@-22.771596,-69.4859392,4202m/data=!3m1!1e3?entry=ttu

Local Environmental Conditions

This project is located in the Calama, which is a city in the Atacama Desert, and one of the driest cities in the world with abundant solar energy.

Lessons Learned

·         This concentrated solar power plant uses molten salt technology and has the capacity of storing electricity for up to 18 hours allowing the power plant to provide energy 24 hours continuously.

·         The Cerro Dominador solar complex consists of the 110MW CSP plant and 100MW solar PV plant.

Source: Santamarta, Jose. “Huge 110 MW Concentrated Solar Power Tower and Storage Project Begins Production in Chile.” HELIOSCSP, helioscsp.com/huge-110-mw-concentrated-solar-power-tower-and-storage-project-begins-production-in-chile/.



Other Sources:

[1] “Atacama I / Cerro Dominador 110MW CSP + 100MW PV | Concentrating Solar Power Projects | NREL.” Solarpaces.nrel.gov, solarpaces.nrel.gov/project/atacama-i-cerro-dominador-110mw-csp-100mw-pv.

Link: https://solarpaces.nrel.gov/project/atacama-i-cerro-dominador-110mw-csp-100mw-pv



[2] “Documents Dedicated to Suppliers.” John Cockerill, johncockerill.com/en/documents-dedicated-to-suppliers/.

Link: https://johncockerill.com/wp-content/uploads/2020/04/John-Cockerill_Energy_Solar_CERRO-DOMINADOR.pdf
