Plant	CEEC Hami
Location	Yiwu Hami Xinjiang (XUAR) China
Owner(s)	China Energy Engineering Corporation (CEEC)
Capacity (MW)	50 MW
Construction Start Date	Oct. 2017
Construction End Date	2019
Generation Start Year	2019
Construction Cost ($)	$ 1.580 mil
Specific Cost ($/kW)	4762.3
LCOE ($/kWh)	0.1
Heliostat Aperture Area (m²)	48.5
Heliostat Manufacturer	Wuham China
Heliostat Model	Stellio
Mirror Manufacturer	Wuhan Sunnpo Solar Technology
Heliostat Dimension	~7.9m diameter
Heliostat Facets (C x R)	pentagon
Solar Field Area (m²)	696751
Heliostat Cost pm² ($)	$127.0
Tower Height (m)	220
Receiver Height (m)	40
Receiver Fluid	Molten Salt - Potassium Nitrate
Receiever Manufacturer	Dongfang China
Receiver Model	External - Cylindrical
Number of Heliostats	14000
Tower Position (Lat/Long)	43.613785, 94.956374

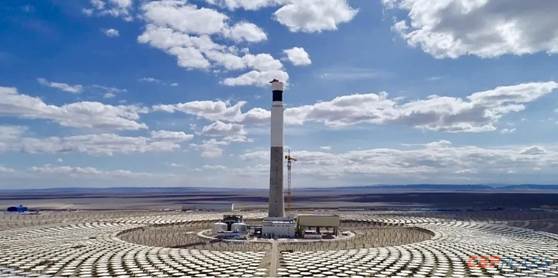

General Plant Data

·         Location: Yiwu Hami Xinjiang (XUAR) China

·         Owner(s): China Energy Engineering Corporation (CEEC)

·         Capacity (MW): 50 MW

Source: https://www.feitingpipe.com/news/the-hami-50mw-tower-csp-project

Plant Timeline

·         Construction Start Date: Oct. 2017

·         Construction End Date: 2019

·         Generation Start Year: 2019

Plant Costs

·         Construction Cost ($): $ 1.580 mil

·         Specific Cost ($/kW): 4762.3

·         LCOE ($/kWh): 0.1

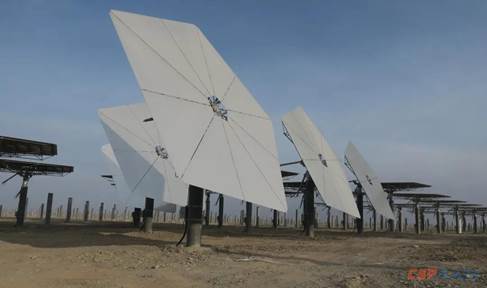

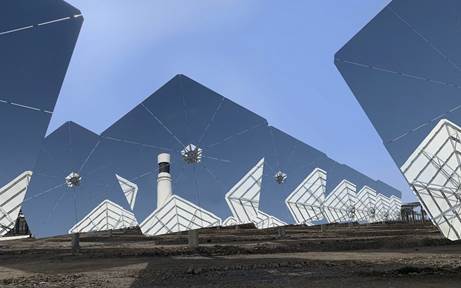

Heliostat Design

·         Heliostat Aperture Area (m²): 48.5

·         Heliostat Manufacturer: Wuham China

·         Heliostat Model: Stellio

·         Mirror Manufacturer: Wuhan Sunnpo Solar Technology

·         Heliostat Dimension: ~7.9m diameter

·         Heliostat Facets (C x R): pentagon

·         Solar Field Area (m²): 696751

·         Heliostat Cost pm² ($): 127

Source: http://en.cnste.org/html/csp/2020/1120/940.html

Source: https://www.cspplaza.com/article-17859-1.html

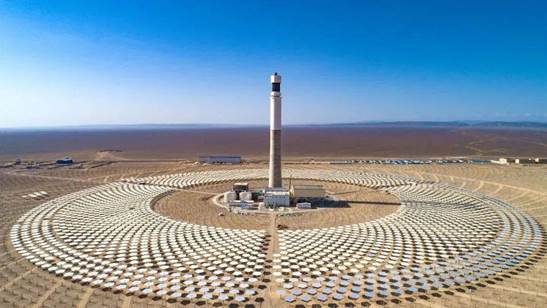

Tower/Receiver

·         Tower Height (m): 220

·         Receiver Height (m): 40

·         Receiver Fluid: Molten Salt - Potassium Nitrate

·         Receiever Manufacturer: Dongfang China

·         Receiver Model: External - Cylindrical

Source: https://www.cspplaza.com/article-17859-1.html

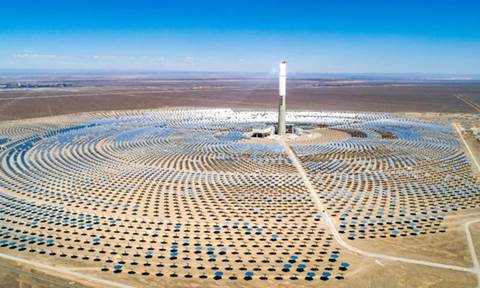

Plant Layout

·         Number of Heliostats: 14000

·         Tower Position (Lat/Long): 43.613785, 94.956374

Source: http://www.cnste.org/html/jishu/2022/1012/9608.html



Local Environmental Conditions

Hami is a city located in Xinjiang Uygur Autonomous Region of China. Its environment and climate conditions are characterized by its location in a continental desert climate zone, which means it experiences distinct seasons with extremes in temperature and limited precipitation, but has abundant sun radiation.

Lessons Learned

The CEEC Hami Solar project is the first project using the new STELLIO heliostats developed by MASERMIC and SBP Sonne. This new technology can improve performance and efficiency of the solar field. The project also use 45000 pieces of electronic equipment for automation and communication indicating the significance of robust electronic systems in managing a large scale solar fields. The MASERMIC advanced control software contributes to the smoother project operation by allowing integral management of the solar field. The success of this project pave the way for the development of new solar power plants project in China.

Source: Kraemer, Susan. “50 MW Hami Tower CSP Project with Novel STELLIO Heliostats Commissioned in China.” SolarPACES, 9 Feb. 2023, www.solarpaces.org/50-mw-hami-tower-csp-project-with-novel-stellio-heliostats-commissioned-in-china/.



Other Sources:

[1] “CEEC Hami - 50MW Tower | Concentrating Solar Power Projects | NREL.” Solarpaces.nrel.gov, solarpaces.nrel.gov/project/ceec-hami-50mw-tower.

Link: https://solarpaces.nrel.gov/project/ceec-hami-50mw-tower

[2] Kurup, Parthiv, et al. Cost Update: Commercial and Advanced Heliostat Collectors. No. NREL/TP-7A40-80482. National Renewable Energy Lab.(NREL), Golden, CO (United States), 2022.

Link: https://doi.org/10.2172/1847876
